SharePoint Document Library Browser Template

Display a SharePoint document library inside Yeeflow as a clean, expandable file browser. Builders select a managed Microsoft Graph / SharePoint Connection, configure the target site and library, and optionally choose a folder path as the starting location.

Actual runtime interface

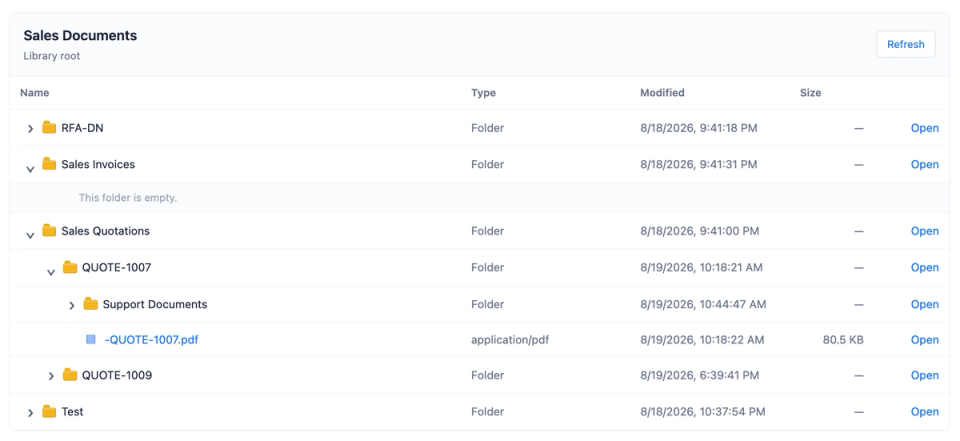

The screenshot below shows the control connected to a SharePoint document library, with expandable folder levels, file metadata, empty-folder feedback, refresh, and Open actions in the real Yeeflow runtime.

SharePoint Document Library Browser running in Yeeflow with nested folders and a PDF file

Key capabilities

Shows the document-library root or the direct children of a configured folder path.
Expands nested folders on demand and caches loaded children until a full refresh.
Follows Microsoft Graph pagination links so each opened folder can return its complete listing.
Sorts folders before files and displays name, type, modified time, file size, and SharePoint Open links.
Includes loading, empty, folder-empty, error, refresh, and responsive narrow-screen states.

Recommended use cases

Project documents, sales quotations, procurement evidence, customer files, policies, contracts, service documents, and departmental knowledge libraries that should remain governed in SharePoint.

Connection and parameters

Bind the required sharePointConnection slot to a Microsoft Graph / SharePoint OAuth HTTP Connection. Configure siteUrl and libraryNameOrId, optionally set folderPath relative to the library root, and use title to replace the default heading.

How retrieval works

The control validates the HTTPS site URL, resolves the site through Microsoft Graph, enumerates the site's drives to match the document library by name or ID, and requests either root children, a configured path's children, or an expanded folder's children. Each folder is fetched independently and all @odata.nextLink pages are collected before rendering.

Read-only behavior

This template does not upload, download, rename, delete, move, select, or write back items. File names and Open actions navigate to the webUrl returned by Microsoft Graph in a new tab. SharePoint permissions continue to govern access.

Security and governance

Use a least-privilege managed Connection and restrict who may configure dynamic site, library, or folder expressions. Never store tokens in Custom Code parameters. Review Graph consent, tenant access, error-message exposure, pagination load, and external-sharing policy before broad rollout.

Production readiness

The source passed a compatible TypeScript compilation check after correcting the Refresh click binding. Before marking the template launchable or certified, validate Connection selection, Graph permissions, site and drive resolution, folder paths, pagination, nested expansion, Open links, responsive layout, error handling, and refresh behavior in the release tenant.

Developer reference

Build patterns behind this template

Use this template as a reference while reviewing the Custom Code developer guide. Learn how the required export structure, input parameters, and rendering patterns fit together.

Read the Custom Code guide View developer examples

Source preview

Code preview

Download source file

import * as React from 'react';

type BrowserProps = {
  context: any;
  connection: any;
  siteUrl: string;
  libraryNameOrId: string;
  folderPath: string;
  title: string;
};

type BrowserState = {
  rootItems: any[];
  childrenById: { [key: string]: any[] };
  expanded: { [key: string]: boolean };
  loadingFolders: { [key: string]: boolean };
  loading: boolean;
  error: string;
  driveId: string;
  resolvedPath: string;
};

function valueToText(value: any): string {
  if (value === null || value === undefined) return '';
  if (typeof value === 'string' || typeof value === 'number' || typeof value === 'boolean') {
    return String(value).trim();
  }
  if (Array.isArray(value)) return value.length ? valueToText(value[0]) : '';
  if (typeof value === 'object') {
    var keys = ['value', 'Value', 'text', 'Text', 'name', 'Name', 'label', 'Label'];
    for (var i = 0; i < keys.length; i += 1) {
      if (value[keys[i]] !== undefined) {
        var nested = valueToText(value[keys[i]]);
        if (nested) return nested;
      }
    }
  }
  return '';
}

function normalizePath(value: any): string {
  var raw = valueToText(value).replace(/\\/g, '/');
  var parts = raw.split('/').map(function (part) { return part.trim(); }).filter(Boolean);
  for (var i = 0; i < parts.length; i += 1) {
    if (parts[i] === '.' || parts[i] === '..') throw new Error('Folder path cannot contain . or .. segments.');
  }
  return parts.join('/');
}

function encodePath(path: string): string {
  if (!path) return '';
  return path.split('/').map(function (part) { return encodeURIComponent(part); }).join('/');
}

function safeError(error: any): string {
  var message = error && error.message ? error.message : String(error || 'Unknown error');
  return message.slice(0, 500);
}

function formatSize(value: any): string {
  var size = Number(value || 0);
  if (!isFinite(size) || size <= 0) return '—';
  var units = ['B', 'KB', 'MB', 'GB', 'TB'];
  var index = 0;
  while (size >= 1024 && index < units.length - 1) {
    size = size / 1024;
    index += 1;
  }
  return (index === 0 ? String(Math.round(size)) : size.toFixed(size >= 10 ? 1 : 2)) + ' ' + units[index];
}

function formatDate(value: any): string {
  if (!value) return '—';
  var date = new Date(value);
  if (isNaN(date.getTime())) return '—';
  return date.toLocaleString();
}

function sortItems(items: any[]): any[] {
  return (items || []).slice().sort(function (left, right) {
    var leftFolder = left && left.folder ? 0 : 1;
    var rightFolder = right && right.folder ? 0 : 1;
    if (leftFolder !== rightFolder) return leftFolder - rightFolder;
    return String(left.name || '').localeCompare(String(right.name || ''), undefined, { sensitivity: 'base' });
  });
}

class SharePointDocumentBrowser extends React.Component<BrowserProps, BrowserState> {
  constructor(props: BrowserProps) {
    super(props);
    this.state = {
      rootItems: [],
      childrenById: {},
      expanded: {},
      loadingFolders: {},
      loading: false,
      error: '',
      driveId: '',
      resolvedPath: ''
    };
    this.reload = this.reload.bind(this);
  }

  componentDidMount() {
    this.reload();
  }

  componentWillReceiveProps(nextProps: BrowserProps) {
    var currentKey = [this.props.siteUrl, this.props.libraryNameOrId, this.props.folderPath, this.props.connection].join('|');
    var nextKey = [nextProps.siteUrl, nextProps.libraryNameOrId, nextProps.folderPath, nextProps.connection].join('|');
    if (currentKey !== nextKey) {
      this.setState({ rootItems: [], childrenById: {}, expanded: {}, driveId: '', error: '' }, function () {
        this.reload(nextProps);
      });
    }
  }

  graphFetch(url: string, props?: BrowserProps): Promise<any> {
    var activeProps = props || this.props;
    var modules = activeProps.context && activeProps.context.modules;
    if (!modules || typeof modules.fetch !== 'function') {
      return Promise.reject(new Error('The Yeeflow runtime did not provide context.modules.fetch.'));
    }
    if (!activeProps.connection) {
      return Promise.reject(new Error('Select a Microsoft Graph Connection for this Custom Code control.'));
    }
    var headers: any = { Accept: 'application/json' };
    var candidate: any = activeProps.connection || {};
    if (candidate.Authorization) headers.Authorization = candidate.Authorization;
    else if (candidate.authorization) headers.Authorization = candidate.authorization;
    else if (candidate.accessToken) headers.Authorization = 'Bearer ' + candidate.accessToken;
    else if (candidate.access_token) headers.Authorization = 'Bearer ' + candidate.access_token;
    else if (candidate.token) headers.Authorization = 'Bearer ' + candidate.token;
    else if (candidate.headers && (candidate.headers.Authorization || candidate.headers.authorization)) {
      headers.Authorization = candidate.headers.Authorization || candidate.headers.authorization;
    }
    return modules.fetch(url, {
      method: 'GET',
      headers: headers,
      connection: activeProps.connection
    }).then(function (response: any) {
      return response.json().catch(function () { return null; }).then(function (data: any) {
        if (!response.ok) {
          var graphMessage = data && data.error && data.error.message ? data.error.message : 'HTTP ' + response.status;
          throw new Error('Microsoft Graph request failed: ' + graphMessage);
        }
        return data || {};
      });
    });
  }

  graphCollection(url: string, props?: BrowserProps): Promise<any[]> {
    var self = this;
    var rows: any[] = [];
    function next(pageUrl: string): Promise<any[]> {
      return self.graphFetch(pageUrl, props).then(function (data: any) {
        rows = rows.concat(Array.isArray(data.value) ? data.value : []);
        var nextLink = data['@odata.nextLink'];
        return nextLink ? next(nextLink) : rows;
      });
    }
    return next(url);
  }

  parseSite(siteUrl: string): { hostname: string; sitePath: string } {
    var parser = document.createElement('a');
    parser.href = siteUrl;
    if (parser.protocol !== 'https:' || !parser.hostname) throw new Error('Site URL must be a valid HTTPS SharePoint site URL.');
    var path = parser.pathname || '/';
    path = path === '/' ? '/' : path.replace(/\/+$/, '');
    return { hostname: parser.hostname, sitePath: path };
  }

  resolveDrive(props: BrowserProps): Promise<string> {
    var self = this;
    var site = this.parseSite(props.siteUrl);
    var siteEndpoint = 'https://graph.microsoft.com/v1.0/sites/' + site.hostname + ':' + site.sitePath;
    return this.graphFetch(siteEndpoint + '?$select=id,webUrl', props).then(function (siteData: any) {
      if (!siteData.id) throw new Error('Microsoft Graph did not return the SharePoint site ID.');
      var requested = props.libraryNameOrId.toLowerCase();
      return self.graphCollection('https://graph.microsoft.com/v1.0/sites/' + encodeURIComponent(siteData.id) + '/drives?$select=id,name,webUrl,driveType', props)
        .then(function (drives: any[]) {
          var drive = drives.filter(function (item: any) {
            return String(item.id || '').toLowerCase() === requested || String(item.name || '').toLowerCase() === requested;
          })[0];
          if (!drive || !drive.id) throw new Error('Document library was not found by name or ID.');
          return String(drive.id);
        });
    });
  }

  loadChildren(driveId: string, folderId?: string, path?: string, props?: BrowserProps): Promise<any[]> {
    var select = '?$select=id,name,folder,file,webUrl,size,lastModifiedDateTime,parentReference';
    var endpoint: string;
    if (folderId) {
      endpoint = 'https://graph.microsoft.com/v1.0/drives/' + encodeURIComponent(driveId) + '/items/' + encodeURIComponent(folderId) + '/children' + select;
    } else if (path) {
      endpoint = 'https://graph.microsoft.com/v1.0/drives/' + encodeURIComponent(driveId) + '/root:/' + encodePath(path) + ':/children' + select;
    } else {
      endpoint = 'https://graph.microsoft.com/v1.0/drives/' + encodeURIComponent(driveId) + '/root/children' + select;
    }
    return this.graphCollection(endpoint, props).then(sortItems);
  }

  reload(overrideProps?: BrowserProps) {
    var self = this;
    var props = overrideProps || this.props;
    if (!props.siteUrl || !props.libraryNameOrId) {
      this.setState({ loading: false, error: 'Configure Site URL and Document Library Name or ID.', rootItems: [] });
      return;
    }
    var path = '';
    try {
      path = normalizePath(props.folderPath);
    } catch (error) {
      this.setState({ loading: false, error: safeError(error), rootItems: [] });
      return;
    }
    this.setState({ loading: true, error: '', rootItems: [], childrenById: {}, expanded: {}, resolvedPath: path });
    this.resolveDrive(props)
      .then(function (driveId: string) {
        return self.loadChildren(driveId, '', path, props).then(function (items: any[]) {
          self.setState({ driveId: driveId, rootItems: items, loading: false });
        });
      })
      .catch(function (error: any) {
        self.setState({ loading: false, error: safeError(error), driveId: '', rootItems: [] });
      });
  }

  toggleFolder(item: any) {
    var self = this;
    var id = String(item.id || '');
    if (!id || !item.folder) return;
    if (this.state.expanded[id]) {
      var collapsed = Object.assign({}, this.state.expanded);
      collapsed[id] = false;
      this.setState({ expanded: collapsed });
      return;
    }
    var expanded = Object.assign({}, this.state.expanded);
    expanded[id] = true;
    if (this.state.childrenById[id]) {
      this.setState({ expanded: expanded });
      return;
    }
    var loadingFolders = Object.assign({}, this.state.loadingFolders);
    loadingFolders[id] = true;
    this.setState({ expanded: expanded, loadingFolders: loadingFolders });
    this.loadChildren(this.state.driveId, id)
      .then(function (items: any[]) {
        var childrenById = Object.assign({}, self.state.childrenById);
        var nextLoading = Object.assign({}, self.state.loadingFolders);
        childrenById[id] = items;
        nextLoading[id] = false;
        self.setState({ childrenById: childrenById, loadingFolders: nextLoading });
      })
      .catch(function (error: any) {
        var nextExpanded = Object.assign({}, self.state.expanded);
        var nextLoading = Object.assign({}, self.state.loadingFolders);
        nextExpanded[id] = false;
        nextLoading[id] = false;
        self.setState({ expanded: nextExpanded, loadingFolders: nextLoading, error: safeError(error) });
      });
  }

  renderRows(items: any[], depth: number): any[] {
    var self = this;
    var rows: any[] = [];
    (items || []).forEach(function (item: any) {
      var id = String(item.id || item.name || Math.random());
      var isFolder = !!item.folder;
      var isExpanded = !!self.state.expanded[id];
      var isLoading = !!self.state.loadingFolders[id];
      rows.push(
        <tr key={id} className="spdb-row">
          <td className="spdb-name-cell">
            <div className="spdb-name-wrap" style={{ paddingLeft: (depth * 24) + 'px' }}>
              {isFolder ? (
                <button type="button" className="spdb-chevron" aria-label={isExpanded ? 'Collapse folder' : 'Expand folder'} onClick={function () { self.toggleFolder(item); }}>
                  {isLoading ? '…' : (isExpanded ? '⌄' : '›')}
                </button>
              ) : <span className="spdb-chevron-spacer" />}
              {isFolder ? <span className="spdb-icon spdb-folder-icon" aria-hidden="true" /> : <span className="spdb-icon spdb-file">▤</span>}
              {isFolder ? (
                <button type="button" className="spdb-name-button" onClick={function () { self.toggleFolder(item); }}>{item.name || 'Unnamed folder'}</button>
              ) : (
                <a className="spdb-file-link" href={item.webUrl || '#'} target="_blank" rel="noopener noreferrer">{item.name || 'Unnamed file'}</a>
              )}
            </div>
          </td>
          <td className="spdb-type-cell">{isFolder ? 'Folder' : ((item.file && item.file.mimeType) || 'File')}</td>
          <td className="spdb-date-cell">{formatDate(item.lastModifiedDateTime)}</td>
          <td className="spdb-size-cell">{isFolder ? '—' : formatSize(item.size)}</td>
          <td className="spdb-open-cell">{item.webUrl ? <a href={item.webUrl} target="_blank" rel="noopener noreferrer">Open</a> : '—'}</td>
        </tr>
      );
      if (isFolder && isExpanded) {
        var children = self.state.childrenById[id];
        if (children && children.length) rows = rows.concat(self.renderRows(children, depth + 1));
        if (children && !children.length && !isLoading) {
          rows.push(<tr key={id + '-empty'} className="spdb-child-empty"><td colSpan={5}><div style={{ paddingLeft: ((depth + 1) * 24 + 44) + 'px' }}>This folder is empty.</div></td></tr>);
        }
      }
    });
    return rows;
  }

  render() {
    var styles = [
      '.spdb{font-family:-apple-system,BlinkMacSystemFont,"Segoe UI",Arial,sans-serif;border:1px solid #e5e9f0;border-radius:8px;background:#fff;color:#1f2937;overflow:hidden}',
      '.spdb-toolbar{display:flex;align-items:center;justify-content:space-between;gap:16px;padding:14px 16px;border-bottom:1px solid #e8ecf2;background:#fafbfd}',
      '.spdb-title{font-size:16px;font-weight:600;color:#172033}.spdb-path{margin-top:3px;font-size:12px;color:#667085}',
      '.spdb-refresh{border:1px solid #cfd7e3;border-radius:5px;background:#fff;color:#146ff6;padding:6px 12px;cursor:pointer}.spdb-refresh:hover{background:#f3f7ff}.spdb-refresh:disabled{color:#98a2b3;cursor:default}',
      '.spdb-alert{margin:14px 16px;padding:10px 12px;border:1px solid #f2c7c7;border-radius:6px;background:#fff7f7;color:#9f2d2d}',
      '.spdb-loading,.spdb-empty{padding:34px 20px;text-align:center;color:#667085}',
      '.spdb-table-wrap{width:100%;overflow:auto}.spdb-table{width:100%;border-collapse:collapse;table-layout:fixed}',
      '.spdb-table th{padding:10px 12px;border-bottom:1px solid #e8ecf2;background:#fff;color:#667085;font-size:12px;font-weight:600;text-align:left}',
      '.spdb-table td{padding:9px 12px;border-bottom:1px solid #edf0f4;font-size:13px;vertical-align:middle}.spdb-row:hover{background:#f7f9fc}',
      '.spdb-name-cell{width:48%}.spdb-type-cell{width:18%;color:#667085;white-space:nowrap;overflow:hidden;text-overflow:ellipsis}.spdb-date-cell{width:17%;color:#667085}.spdb-size-cell{width:9%;color:#667085;text-align:right}.spdb-open-cell{width:8%;text-align:right}',
      '.spdb-name-wrap{display:flex;align-items:center;min-width:240px}.spdb-chevron{width:24px;height:24px;border:0;background:transparent;color:#526071;cursor:pointer;font-size:20px;line-height:20px;padding:0}.spdb-chevron-spacer{display:inline-block;width:24px}',
      '.spdb-icon{display:inline-flex;width:20px;margin-right:7px;justify-content:center;flex:0 0 20px}.spdb-file{color:#146ff6;font-size:14px}',
      '.spdb-folder-icon{position:relative;width:16px;height:11px;flex:0 0 16px;margin-left:2px;margin-right:9px;margin-top:2px;background:#f4b41b;border:1px solid #cf9008;border-radius:2px;box-shadow:inset 0 1px 0 rgba(255,255,255,.35)}',
      '.spdb-folder-icon:before{content:"";position:absolute;left:1px;top:-4px;width:7px;height:4px;background:#f4b41b;border:1px solid #cf9008;border-bottom:0;border-radius:2px 2px 0 0}',
      '.spdb-name-button{border:0;background:transparent;padding:2px 0;color:#172033;cursor:pointer;text-align:left}.spdb-name-button:hover,.spdb-file-link:hover{text-decoration:underline}.spdb-file-link,.spdb-open-cell a{color:#146ff6;text-decoration:none}',
      '.spdb-child-empty td{padding:8px 12px;color:#98a2b3;font-size:12px;background:#fafbfd}',
      '@media(max-width:760px){.spdb-type-cell,.spdb-date-cell,.spdb-size-cell{display:none}.spdb-name-cell{width:78%}.spdb-open-cell{width:22%}.spdb-toolbar{align-items:flex-start}.spdb-title{font-size:15px}}'
    ].join('');
    var pathLabel = this.state.resolvedPath ? this.state.resolvedPath : 'Library root';
    return (
      <div className="spdb">
        <style>{styles}</style>
        <div className="spdb-toolbar">
          <div><div className="spdb-title">{this.props.title || 'SharePoint documents'}</div><div className="spdb-path">{pathLabel}</div></div>
          <button type="button" className="spdb-refresh" disabled={this.state.loading} onClick={function () { this.reload(); }.bind(this)}>{this.state.loading ? 'Loading…' : 'Refresh'}</button>
        </div>
        {this.state.error ? <div className="spdb-alert">{this.state.error}</div> : null}
        {this.state.loading ? <div className="spdb-loading">Loading SharePoint documents…</div> : null}
        {!this.state.loading && !this.state.error && !this.state.rootItems.length ? <div className="spdb-empty">No folders or files were found in this location.</div> : null}
        {!this.state.loading && this.state.rootItems.length ? (
          <div className="spdb-table-wrap"><table className="spdb-table"><thead><tr><th>Name</th><th className="spdb-type-cell">Type</th><th className="spdb-date-cell">Modified</th><th className="spdb-size-cell">Size</th><th className="spdb-open-cell"></th></tr></thead><tbody>{this.renderRows(this.state.rootItems, 0)}</tbody></table></div>
        ) : null}
      </div>
    );
  }
}

export class CodeInApplication implements CodeInComp {
  description() {
    return 'Displays a SharePoint document library folder as a OneDrive-style expandable file browser.';
  }

  requiredFields() {
    return [];
  }

  inputParameters(): InputParameter[] {
    return [
      { id: 'siteUrl', name: 'SharePoint Site URL', type: 'variable', description: 'HTTPS URL of the SharePoint team site.' },
      { id: 'libraryNameOrId', name: 'Document Library Name or ID', type: 'variable', description: 'Document library display name or Microsoft Graph drive ID.' },
      { id: 'folderPath', name: 'Folder Path', type: 'variable', description: 'Optional path relative to the library root. Leave empty to show the root.' },
      { id: 'title', name: 'Title', type: 'string', description: 'Optional heading shown above the file browser.' }
    ];
  }

  connections() {
    return [
      { id: 'sharePointConnection', desc: 'Microsoft Graph / SharePoint OAuth HTTP Connection' }
    ];
  }

  resolveConnection(context: any): any {
    if (context && context.connections && context.connections.sharePointConnection) return context.connections.sharePointConnection;
    if (context && typeof context.getConnection === 'function') {
      try { return context.getConnection('sharePointConnection'); } catch (error) { return null; }
    }
    return null;
  }

  render(context: CodeInContext, fieldsValues: any, readonly: boolean) {
    var params: any = context && context.params ? context.params : {};
    return <SharePointDocumentBrowser
      context={context}
      connection={this.resolveConnection(context)}
      siteUrl={valueToText(params.siteUrl)}
      libraryNameOrId={valueToText(params.libraryNameOrId)}
      folderPath={valueToText(params.folderPath)}
      title={valueToText(params.title) || 'SharePoint documents'}
    />;
  }
}

Implementation notes

User guide

Download guide

SharePoint Document Library Browser

Purpose

This Yeeflow Custom Code control presents a SharePoint document library as an expandable file browser inside a Yeeflow page or form. It is designed for read-only discovery and navigation: users can inspect folders and files, expand nested folders, refresh the current listing, and open an item in SharePoint.

When to use it

Use the control when users need document-library visibility without leaving the Yeeflow process until they choose a specific item. Typical examples include sales quotation folders, project documentation, procurement evidence, customer files, policies, contracts, and departmental knowledge libraries.

Do not use this control when the requirement includes upload, rename, delete, move, inline content preview, file download through Yeeflow, selection writeback, or document editing. Those capabilities are not implemented in this source.

Supported placement

Observed in the source:

The component reads only context.params, the named Connection, and context.modules.fetch.
It does not read form-field values and does not write to fields or variables.
It ignores the host readonly flag because it exposes no data-mutation actions.

Likely compatible placements are Dashboard pages, Approval Forms, and Data List custom forms, provided the runtime exposes Custom Code connections and the fetch wrapper. Validate each placement in the target tenant. Public-form support is not claimed.

Required connection

The Custom Code declares one connection:

Connection ID	Required	Purpose
`sharePointConnection`	Yes	Microsoft Graph / SharePoint OAuth HTTP Connection used for all site, drive, and drive-item GET requests.

Create or select a managed Connection whose identity is authorized to read the target site and document library. Apply the least privilege allowed by the tenant. Do not store tokens in Custom Code parameters.

At runtime, the source first checks context.connections.sharePointConnection, then falls back to context.getConnection('sharePointConnection'). Requests are sent through context.modules.fetch with the connection object. The source also recognizes common connection authorization fields when the runtime exposes them.

Input parameters

Parameter	Yeeflow type	Required	Purpose	Example
`siteUrl`	Variable	Yes	HTTPS URL of the SharePoint site.	`https://contoso.sharepoint.com/sites/Sales`
`libraryNameOrId`	Variable	Yes	Document-library display name or Microsoft Graph drive ID.	`Documents`
`folderPath`	Variable	No	Path below the library root. Leave empty for the root.	`Sales Quotations/2026`
`title`	String	No	Browser heading.	`Sales Documents`

`siteUrl`

Provide the full HTTPS URL of the SharePoint team site, not a document or folder sharing URL. The code parses the hostname and site path, removes trailing slashes, and asks Microsoft Graph to resolve the site.

Examples:

https://contoso.sharepoint.com/sites/Sales
https://contoso.sharepoint.com/teams/Operations

Non-HTTPS values and URLs without a hostname are rejected.

`libraryNameOrId`

Provide either the document-library display name or its Microsoft Graph drive ID. Matching is case-insensitive. The code queries all drives exposed for the resolved site and selects the first exact ID or name match.

If a library was renamed, update this parameter or use the stable drive ID.

`folderPath`

Provide a path relative to the document-library root. Do not include the site URL or library name. Forward and backward slashes are accepted and normalized. Leading, trailing, and repeated slashes are removed.

Examples:

Empty value: display the library root
Sales Quotations: display only the direct children of that folder
Sales Quotations/2026/Approved: start at a nested folder

. and .. path segments are rejected. The configured path is encoded segment by segment before it is sent to Microsoft Graph.

`title`

Optional static heading above the browser. If empty, the component displays SharePoint documents.

Configuration steps

Confirm the target SharePoint site URL and document-library name or drive ID.
Create or select a Microsoft Graph / SharePoint OAuth HTTP Connection in Yeeflow.
Ensure the connection identity can read the target site, drive, folders, and files according to tenant policy.
Add a Custom Code control to the intended Yeeflow page or form.
Paste or upload sharepoint-document-library-browser.tsx.
Bind the declared sharePointConnection connection slot.
Configure siteUrl and libraryNameOrId.
Leave folderPath empty for the library root, or enter a path relative to that root.
Optionally set title.
Preview the control and confirm the initial listing, nested-folder expansion, Open links, and Refresh behavior.
Repeat the test in the final published runtime and with an account representing the intended audience.

Retrieval and display behavior

On initial load, the component:

Resolves the configured SharePoint site.
Retrieves the site's drives and finds the configured document library.
Loads the root or configured folder.
Requests only id, name, folder, file, webUrl, size, lastModifiedDateTime, and parentReference for each item.
Follows every Microsoft Graph @odata.nextLink for that folder.
Sorts folders before files, then sorts by name without case sensitivity.

Nested folders load lazily when expanded. Loaded child collections are cached in component state until Refresh or a relevant parameter/connection change clears the browser state.

User interaction

Select the chevron or folder name to expand or collapse a folder.
Select a file name or Open to open its SharePoint webUrl in a new tab.
Select Refresh to resolve the site and library again and reload the starting location.
On screens narrower than 760 px, Name and Open remain visible while Type, Modified, and Size are hidden.

The component displays dedicated messages for loading, empty locations, empty expanded folders, missing configuration, missing Connection, unsupported runtime fetch, invalid paths, missing sites or libraries, and Microsoft Graph request errors.

Example business scenarios

Sales quotation library

Show the Sales Quotations folder from a central Documents library inside a sales dashboard. Users expand opportunity folders and open the latest quotation in SharePoint.

Project documentation

Bind folderPath to a trusted expression that resolves to a project folder such as Projects/PRJ-1042. Validate that the expression cannot produce an unintended site or path.

Policy library

Leave folderPath empty to expose the approved policy library root. Users browse by department and open the authoritative file in SharePoint.

Limitations and assumptions

Display and navigation only; there is no SharePoint mutation or Yeeflow writeback.
File content is not downloaded or previewed inside the component.
The Open link is present only when Microsoft Graph returns webUrl.
Date text uses the browser locale and timezone.
Loading a folder follows all pagination links, so very large folders may take time and generate multiple API requests.
Folder children are loaded on demand, not as one recursive initial query.
The component does not implement search, filtering, paging controls, breadcrumb navigation, column sorting, permissions editing, or item selection.
Connection and context.modules.fetch behavior must be verified in each Yeeflow runtime.
The source uses a legacy React class lifecycle method for broad runtime compatibility.

Security and governance

Use a dedicated least-privilege managed Connection.
Restrict who can configure dynamic site, library, and folder expressions.
Confirm that users should see every item readable by the Connection identity in the configured location.
Do not place secrets, access tokens, or authorization headers in siteUrl, libraryNameOrId, folderPath, or title.
Review the tenant's Microsoft Graph consent, conditional-access, data-residency, auditing, and external-sharing policies.
Validate displayed Graph error messages before exposing the control to broad audiences.
The SharePoint logo in template artwork is used only to identify compatibility with Microsoft SharePoint.

Testing checklist

Troubleshooting

Configure Site URL and Document Library Name or ID

One or both required parameters resolved to an empty value. Check the expression result, not only the value shown in the Designer.

Select a Microsoft Graph Connection

Bind the declared sharePointConnection slot and confirm the Connection is available in the published runtime.

The Yeeflow runtime did not provide `context.modules.fetch`

The current placement or runtime does not expose the required fetch wrapper. Test in a supported Custom Code surface or confirm platform support.

Document library was not found by name or ID

Confirm that the site is correct, the Connection can enumerate its drives, and the library display name or drive ID exactly matches after case normalization.

Access denied or Microsoft Graph request failed

Review the Connection identity, tenant consent, site access, library permissions, conditional-access rules, and the HTTP status returned by Microsoft Graph.

Folder cannot be found

Enter a path relative to the library root. Remove the site URL and library name, check each segment's spelling, and avoid . or ...

A folder is slow to open

The folder may contain enough items to require several Graph pages. The component follows all pages before displaying the completed child collection.

Refresh previously showed a configuration error

Version 1.0.0 of this published source includes a corrected Refresh event binding that explicitly calls reload() without passing the React click event as configuration.

Configuration

Example configuration

Download config

SharePoint Document Library Browser Example Configuration

Required Connection binding

Connection slot	Example selection
`sharePointConnection`	Microsoft Graph / SharePoint OAuth HTTP Connection managed by Yeeflow

The selected Connection must be authorized to read the configured SharePoint site and document library. Never paste an access token into a string parameter.

Example 1: Show the document-library root

Parameter	Example value
`siteUrl`	`https://contoso.sharepoint.com/sites/Sales`
`libraryNameOrId`	`Documents`
`folderPath`	Empty
`title`	`Sales Documents`

Expected result: the control lists all direct folders and files in the Documents library root. Users can expand folders to load deeper levels.

Example 2: Start inside one folder

Parameter	Example value
`siteUrl`	`https://contoso.sharepoint.com/sites/Sales`
`libraryNameOrId`	`Documents`
`folderPath`	`Sales Quotations`
`title`	`Sales Quotations`

Expected result: the first screen contains only the direct children of the Sales Quotations folder. It does not show sibling folders from the library root.

Example 3: Start inside a nested project folder

Parameter	Example value
`siteUrl`	`https://contoso.sharepoint.com/sites/Projects`
`libraryNameOrId`	`Shared Documents`
`folderPath`	`Active Projects/PRJ-1042/Deliverables`
`title`	`Project Deliverables`

Expected result: the browser starts at the Deliverables folder. Subfolders below Deliverables remain expandable.

Example 4: Resolve the library by drive ID

Parameter	Example value
`siteUrl`	`https://contoso.sharepoint.com/sites/Operations`
`libraryNameOrId`	`b!exampleDriveIdentifier`
`folderPath`	`Policies/Approved`
`title`	`Approved Policies`

Use a real Microsoft Graph drive ID from the target tenant. A drive ID is useful when the library display name may change.

Dynamic folder-path example

folderPath is a Variable parameter and may be bound to a trusted Yeeflow expression, for example a controlled project-folder value. The expression must resolve to a plain relative path such as:

Projects/PRJ-1042

Do not return a site URL, sharing URL, JSON object, or array. Restrict dynamic values so users cannot redirect the shared Connection to unintended locations.

Path rules

Leave the value empty to show the library root.
Use a path relative to the library root.
Both / and \ separators are normalized.
Leading, trailing, and repeated separators are ignored.
. and .. path segments are rejected.
Each path segment is URL-encoded by the control.

Validation checklist

Confirm the site resolves with the selected Connection.
Confirm the library name or drive ID resolves.
Test an empty root path and at least one nested folder path.
Expand a non-empty and an empty child folder.
Test a location large enough to exercise Microsoft Graph pagination.
Confirm Open links point to the intended SharePoint tenant and item.
Select Refresh and confirm the same configured location reloads.
Test the responsive layout below 760 px.

SharePoint Document Library Browser

What this template helps teams build

Actual runtime interface

Key capabilities

Recommended use cases

Connection and parameters

How retrieval works

Read-only behavior

Security and governance

Production readiness

Build patterns behind this template

Code preview

User guide

SharePoint Document Library Browser

Purpose

When to use it

Supported placement

Required connection

Input parameters

siteUrl

libraryNameOrId

folderPath

title

Configuration steps

Retrieval and display behavior

User interaction

Example business scenarios

Sales quotation library

Project documentation

Policy library

Limitations and assumptions

Security and governance

Testing checklist

Troubleshooting

Configure Site URL and Document Library Name or ID

Select a Microsoft Graph Connection

The Yeeflow runtime did not provide context.modules.fetch

Document library was not found by name or ID

Access denied or Microsoft Graph request failed

Folder cannot be found

A folder is slow to open

Refresh previously showed a configuration error

Example configuration

SharePoint Document Library Browser Example Configuration

Required Connection binding

Example 1: Show the document-library root

Example 2: Start inside one folder

Example 3: Start inside a nested project folder

Example 4: Resolve the library by drive ID

Dynamic folder-path example

Path rules

Validation checklist

More reusable patterns to compare

Knowledge Base

Activity Timeline

Approval Decision Panel

We use cookies to improve your experience

`siteUrl`

`libraryNameOrId`

`folderPath`

`title`

The Yeeflow runtime did not provide `context.modules.fetch`
